Product description

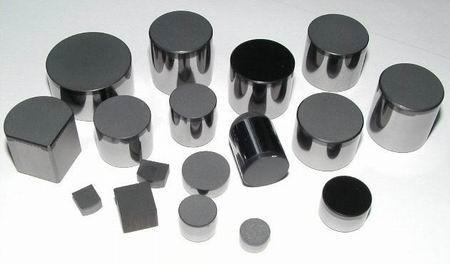

PDC cutters are made by diamond powder and tungsten carbide substrate. Combining the advantage of two material makes the PDC cutter inserts widely used in coal mining, geological drilling, water well drilling and oil exploration. We can provide PDC cutters with any ships, such as flat face PDC, sphercial face PDC, domed PDC and different shapes PDC.
 |  |
PDC cutters for coal mining and geological drilling series are suitable for soft to hard rock formation drilling and have high impact toughness and heat stability. This series products have plane and non-planer. We can provide customized products as your requirements.
Specification
| Geological drilling series PDC cutters | |||||

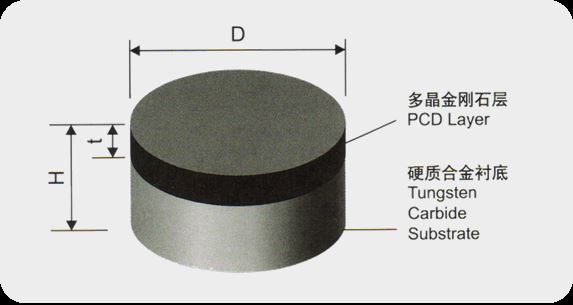

Dimension code | diameter (mm) | Total height (mm) | Diamond layer (mm) | Diamond Chamfer | Carbide chamfer |
| 1004 | 10.05±0.05 | 4.0±0.10 | 0.9-1.1 | 0.5×45° | 0.5×45° |
| 1204 | 12.05±0.05 | 4.0±0.10 | 1.2-1.4 | 0.5×45° | 0.5×45° |
| 1304 | 13.05±0.05 | 4.0±0.10 | 1.2-1.4 | 0.5×45° | 0.5×45° |
| 1308 | 13.05±0.05 | 8.0±0.10 | 1.4-1.6 | 0.5×45° | 0.5×45° |
| We can provide customized products, if you have special requirement, please inform us detail parameters. | |||||

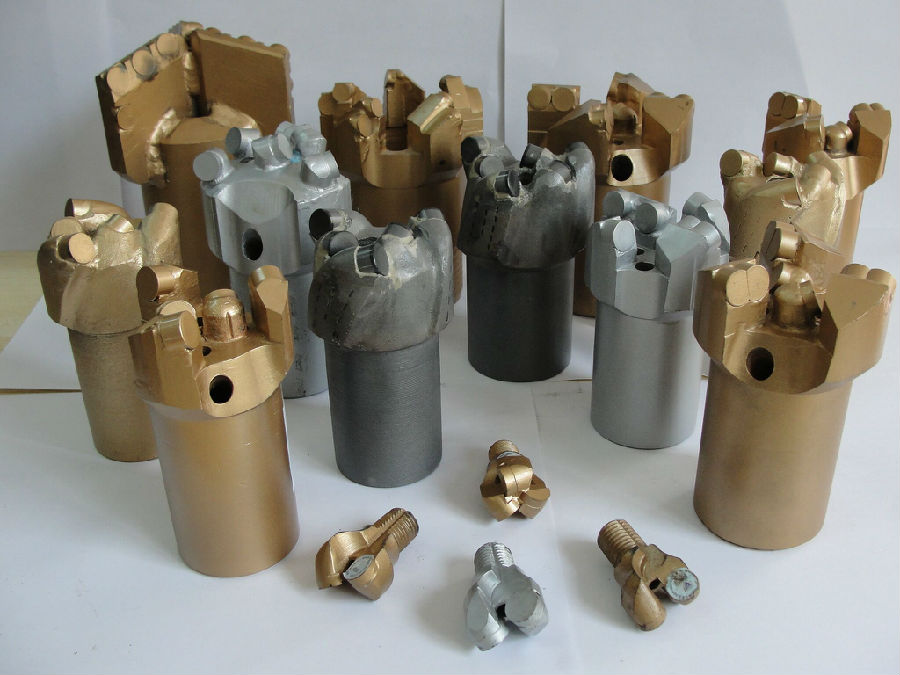

Application of geological drilling PDC cutters are mainly used in making PDC drill bits.
Packaging and shipping
